Create Your Own User Interface
Create Your Own User Interface

Skinning Tutorial

You want to create skins for yourself or to share them with the users community? It's very simple! Skinnable plug-ins are delivered with several skins inside. You can start with one of them and modify it to do your own.

Read the KUIML language user manual (download as chm), download the tutorial samples and you are ready to go!

KUIML is a simple yet powerful programming language: you do not need to be a programmer or a graphics designer to create a skin that suits your needs. Get started and post your skin when it's ready! Join the designers who have already uploaded skins for our Download Skins page.

All Blue Cat Audio Plug-ins are created With Blue Cat's Skinning Language (KUIML) Alternative Skins for Blue Cat Audio Software

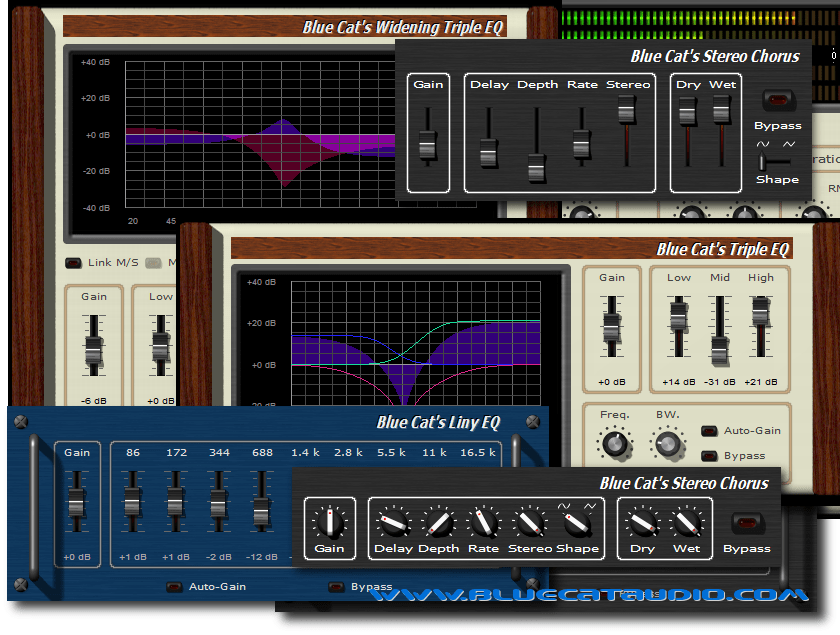

An example of what you can do with Blue Cat's Skinning Language. See more examples here.

If you do not feel comfortable with using the language but you have nice graphics to create skins, please contact us: we will help you find someone who can do the skin for you.


Main features of the KUIML engine:

  • Alpha channel support for tranparency.
  • Multi layers support.
  • Advanced Layout capabilities: automated widgets layout or pixel-positioning, dynamic layout.
  • Define and reuse your own custom widgets.
  • Add interactivity with custom scripts.


Here are a few more pointers to help you getting started with skin design:

  • The GIMP, a free image manipulation program.
  • Pov Ray, a free 3D Ray tracer.
  • IrfanView, a free software for simple image operations.
  • Notepad 2, a free Notepad-like text editor with XML syntax highlighting.
  • XML Viewer, a free software which makes XML editing more than easy for non-programmers.
  • SkinMan and KnobMan, utilities to create skins graphics.

Share Your Skins

Now that you have created your own skins, share them with the community!

Skinning Language Versions History >subscribe to our newsletter

Version 2.0 (2015/11/25)

  • Added scripting support.
  • New event model to trigger actions.
  • New action types.
  • New GROUP and TIMER model elements.
  • New openGL scripting widget.
  • New documentation.
  • Many other improvements for existing elements.

Version 1.9.1 (2013/02/12)

  • New cell attributes exposed for full dynamic layout support.
  • New Action model type added.

Version 1.9 (2012/03/30)

  • Added commonly used patterns as language extensions.
  • Added default display/control response curves capability for parameters, curves and surfaces.

Version 1.8 (2011/07/11)

  • Added png images support.
  • Widgets that can be pushed (buttons, menus, sliders, knobs...) now expose a read only "pushed" attribute.
  • Added rounding capabilities to parameter to text conversion elements (PARAM_TEXT or PARAM_TO_STRING_LINK) thanks to the significant_digits attribute.

Version 1.7 (2010/11/15)

  • New build time features such as REPEAT, LOCAL_VARIABLE, formula definition and override support for variables.
  • Parameters now expose their min/max and default values.
  • Parameters values can now be rounded when displayed.

Version 1.6.2 (2010/08/29)

  • Animations support.

Version 1.6.1 (2009/09/20)

  • Misc text enhancements.

Version 1.6 (2009/08/10)

  • New 3D rendering capabilities.
  • Parameters, surfaces and curves can now be defined with math formulas.

Version 1.5 (2009/06/26)

  • New "flex" attribute for flexible cells support.
  • Dynamic layout support (layout may now change once the skin has been built).
  • Mac support (and Mac specifics now documented).
  • The documentation is now available online: skinning language online documentation.

Version 1.4.4 (2008/06/05)

  • Inner content support for templates.
  • Misc improvements.

Version 1.4.3 (2008/03/03)

  • New widgets (popup menu for parameters and XY curves graph).
  • Added multi link support for curves and strings.
  • Custom enumeration values can now be defined and dynamically changed.
  • Fonts should now use the size attribute instead of width and height (for future Mac compatibility support).

Version 1.4.1 (2008/02/07)

  • New parameter control widgets (joystick and text edit box).
  • Minor font behavior changes.

Version 1.4 (2007/12/10)

  • new STRING object type and STRING_LINK and associated widgets.
  • new zoom selection widget.

Version 1.3.4 (2007/08/30)

  • Minor Changes (see the documentation for details).

Version 1.3.3 (2007/08/13)

  • New Action button widget to trigger actions.
  • New INCLUDE_ONCE directive to simplify multiple file inclusion.

Version 1.3.2 (2007/05/21)

  • Parameter links improvements.
  • New UNDEFINE directive.

Version 1.3 (2007/03/20)

  • New widgets introducing parameter information and surface viewing widgets.
  • New model elements, including Curves and Surfaces.
  • VARIABLE and TEMPLATE language elements now allow the designer to do even more reusable code.

Version 1.2.5 (2007/01/18)

  • New "scratch pad" 3D control widget.
  • Parameter and curves widgets are now zoomable.
  • The opacity of the window containing the skin can be controlled within the skin.
  • Exposed parameters are now documented.

Version 1.2.4 (2006/11/06)

  • The 'shift' key now controls a fine tuning mode for knobs and sliders.

Version 1.2.3 (2006/10/16)

  • Curve graphs can now be anti-aliased and oversampled.

Version 1.2.2 (2006/09/10)

  • Normalized links between parameters allowed.
  • New element to create you own curves from parameters evolution over time.
  • Font size can now be expressed as a percentage of the current size or as an increment from the current size.

Version 1.2.1 (2006/08/25)

  • Custom fonts support.
  • A precision editing popup window now appears when double clicking on widgets.

Version 1.2 (2006/08/13)

  • Parameters defined in the skin can now be made persistent.

Version 1.1 (2006/06/06)

  • New layout capabilities.
  • Improved transparency support, added opacity attribute.
  • Linking capabilities between objects.
  • Graphes and curves support
  • New documentation format (chm).

Version 1.0 (2006/02/12)

First version of Blue Cat's Skinning Language.
